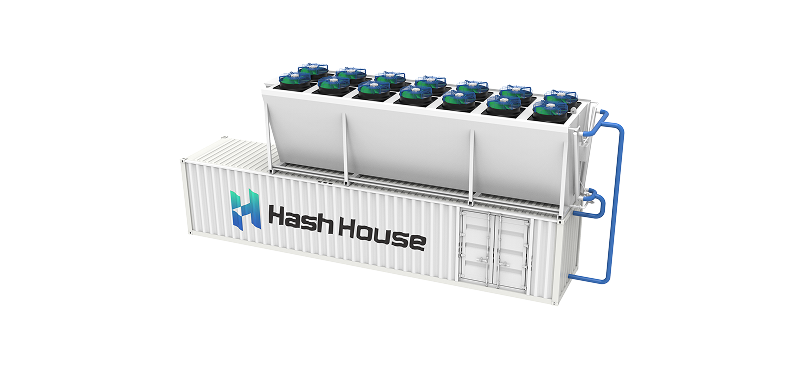

Trident-HYD

Hash House Trident-HYD is a series of hydro cooling containers engineered for efficient thermal management and scalable deployment, with flexible customization to meet specific site requirements.

Premier Design

01.

Plug-and-Play Effciency

Trident series containers are is housed in a standard ship-class certified 40/45-foot container, eliminating the need for external cooling sources or customized logistics requirements. These features enable quick and hassle-free deployment, scalability, and migration that lead to significant time and cost savings.

02.

All-in-One Design

Trident series containers integrate integrates essential components including the tank, smart PDU, power distribution system, and security system into a single comprehensive unit. This streamlined design ensures optimal performance and simplifies maintenance procedures.

03.

MicroBT-Certified

The Trident series is officially certified by MicroBT for seamless compatibility with WhatsMiner immersion and hydro cooling servers.

04.

Smart Noise Reduction

Equipped with smart frequency conversion fans and pumps, Trident series containers ensure efficient heat dissipation while dynamically reducing machine ­generated noise levels with indoor maintained below 45 decibels.

05.

Premium quality

All important components sourced from trusted brands and certified with UL standards for safety and reliability.

06.

Customizable design

Customizable design approach allows us to tailor every aspect of the design and production process, ensuring that the final product aligns perfectly with your unique needs and expectations.

Trident-HYD

Trident120-HD1200

Trident240-HD2400

Trident420-HD2400

Overview

Dimensions

45HQ 13,716 x 2,438 x 2,896 mm (LxWxH)

40HQ 12,192 x 2,438 x 2,896 mm (LxWxH)

40HQ 12,192 x 2,438 x 2,896 mm (LxWxH)

Est. Shipping Weight

30,900lb(14,000kg)

24300lb(11000kg)

*Dry Cooler Not Included

33,070lb(15,000kg)

*Dry Cooler Not Included

Miner Capacity

Whatsminer

120

240

-

Antminer(S19 Hyd/S21 Hyd)

-

-

420

Antminer(S21e XP Hydro 3U)

84

168

-

Power

Max. Power Load

1,200kW

2,400kW

2,400kW

Smart PDU Quantity

6

12

-

Cooling

Cooling Type

Dry Cooler

Dry Cooler

Dry Cooler

Environment

Ambient Temperature

-35~45℃/-31~113℉

-35~45℃/-31~113℉

-35~45℃/-31~113℉

After Sales

Warranty

1 Year

1 Year

1 Year

Default

Specifications

Globally compatible

3-Phase 380V–480V electrical system compatible with global standards required

01

Optimized PUE&WUE

At 45°C, with zero water consumption and PUE as low as 1.06 — driving high efficiency (based on standard ASIC operation mode)

02

Efficiency and Reliability

Strategic partnerships with global leaders like Wilo, Kelvion, Guntner, and Norak enable us to develop custom solutions optimized for efficiency, reliability, and lifespan

03

Intelligent Control System

With the Siemens PLC system, users can seamlessly monitor machine status, ensuring maximum protection and optimized system performance

04

Quick Depoly

Highly prefabricated solution allows for rapid on-site installation and deployment immediately after delivery.

05

Enhanced

Options

Centralized Intelligence

Smart group control and remote operation enable efficient multi-unit management and rapid power response.

01

User-friendly

Air-conditioned modules enhance the working environment and improve operational comfort for maintenance personnel

02

Built for Global Standards

We offer highly adaptable solutions that are certifiable to UL, CSA, CE, DOE, and ASME standards, and can be custom-engineered to meet NFPA, ISO, and ANSI requirements, meeting diverse regulatory needs across global markets.

03

Fully Customized

Delivering plug-and-play solutions customized for each project's unique requirements

04
