Trident IMM

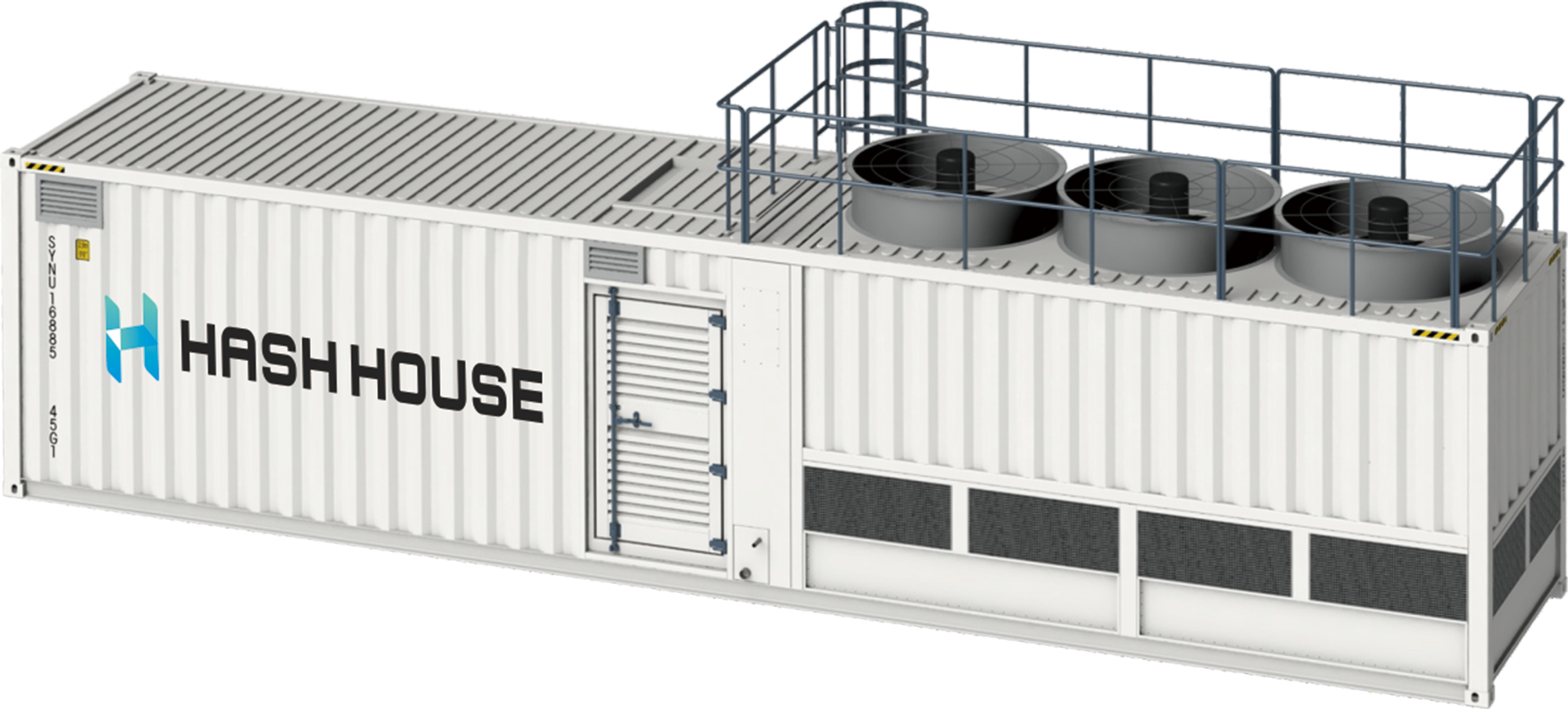

The Trident-IMM is a series of immersion containers crafted for optimal thermal management in high-density computing environments. Leveraging advanced cooling technology, these containers safeguard sensitive equipment, ensuring reliable performance and maximum uptime. Their robust, customizable design supports scalability and enhances operational efficiency, making Trident-IMM an ideal solution for diverse applications requiring effective cooling solutions.

Trident128-IE1200

Overview

Dimension

40 HQ

Power Capacity

1200 MW

Operating Temperature

-35~50℃ / -31~122℉

Capacity

128 units of M56/M66 series

1 Year Warranty

Y

Main Electrical

UL/CSA/NEC/CEC Compliant

Optional

415/480 Compatible

Y

Smart Frame ACB

Y

LSIG Four-Stage Protection

Y

120V Auxiliary Transformer

Y

Current & Voltage Management

Y

Smart PDUs

Plugs

16-Port *8

ABB UL-certified MCB

Y

Leakage Protection

Y

Overload Alarm

Y

Remote Control

Y

Others

Premium Brand Drycooler (i.e. Guntner)

N/A

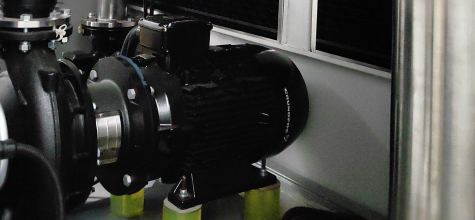

Premium Brand Pump (i.e. Grundfos)

Y

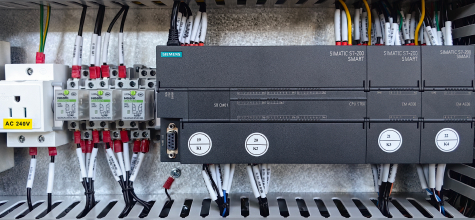

PLC control (i.e. Siemens)

Y

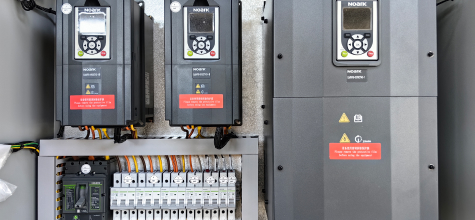

VFD

Y

Fluid Monitoring System

Y

Air Conditioner

Optional

  • Precision-Engineered Tank Design:

    Utilizing advanced computational fluid dynamics (CFD) simulations, our tanks are custom-designed inch by inch to perfectly fit the servers, ensuring optimal cooling and maximum density.

    01
  • Efficient Coolant Filtration:

    The coolant loop includes a basket filter with low resistance and high flow capacity, ensuring effective and efficient cooling.

    02
  • High-Efficiency Cooling:

    Our single-loop design ensures high efficiency and significantly reduces maintenance costs, while the Grundfos pumps maintain consistent system pressure.

    03
  • Adaptive Energy and Water Management:

    The cooling tower automatically adjusts to ambient temperature, optimizing energy use and achieving zero water consumption below 10°C (50°F).

    04
  • Independent Remote Control:

    Offers remote control capabilities via an independent system for enhanced flexibility and convenience.

    05

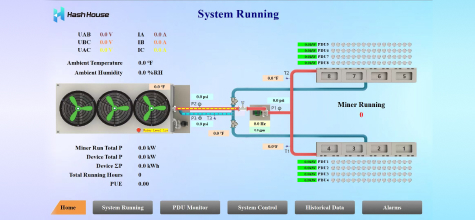

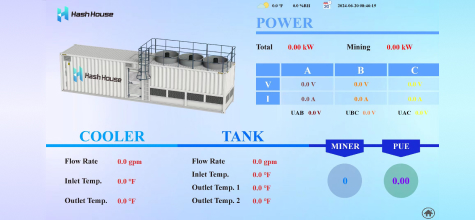

  • Real-Time Monitoring:

    Provides real-time data on flow rate, temperature, coolant liquid level, and pressure values to ensure optimal performance and immediate response to any issues.

    06
  • UL Certified Components:

    Utilizes UL-certified main components, ensuring high safety and reliability standards.

    07
  • MicroBT Certified

    In collaboration with MicroBT, the Trident128-ID1200 is the first certified immersion cooling container specifically designed for the MicroBT Mx6 series.

    08
Trident128-ID1200
