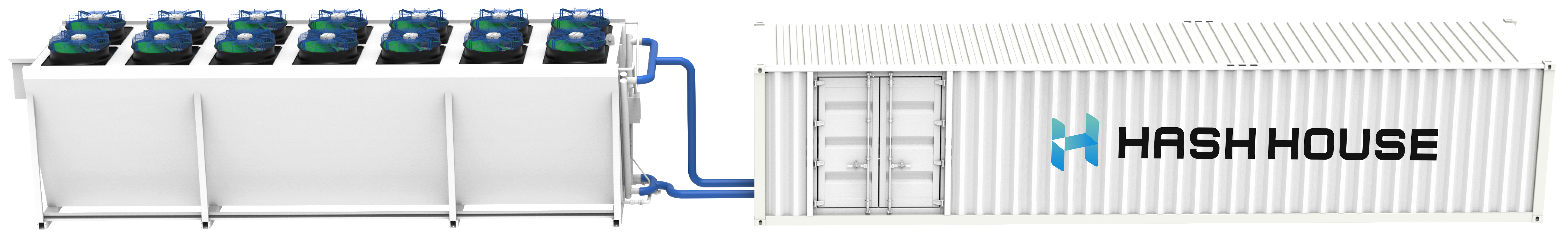

Trident-IMM

The Trident-IMM is a series of immersion containers crafted for optimal thermal management in high-density computing environments. Leveraging advanced cooling technology, these containers safeguard sensitive equipment, ensuring reliable performance and maximum uptime. Their robust, customizable design supports scalability and enhances operational efficiency, making Trident-IMM an ideal solution for diverse applications requiring effective cooling solutions.

Horizontal placement

Vertical placement

Trident160-ID1100

Overview

Dimension

40 GP

Power Capacity

1100 MW

Operating Temperature

-31~122℉ / -35~50 ℃

Capacity

160 Units S21Imm / 192 Units S21

1 Year Warranty

Y

Main Electrical

UL/CSA/NEC/CEC Compliant

Optional

415/480 Compatible

Y

Smart Frame ACB

Y

LSIG Four-Stage Protection

Y

120V Auxiliary Transformer

Y

Current & Voltage Management

Y

Smart PDUs

Plugs

24-Port *8

ABB UL-certified MCB

Y

Leakage Protection

Y

Overload Alarm

Y

Remote Control

Y

Others

Premium Brand Drycooler (i.e. Guntner)

Y

Premium Brand Pump (i.e. Grundfos)

Y

PLC control (i.e. Siemens)

Y

VFD (ABB/Noark)

Optional

Fluid Monitoring System

Y

Air Conditioner

Optional

Trident128-IE1200
