Trident -IMM

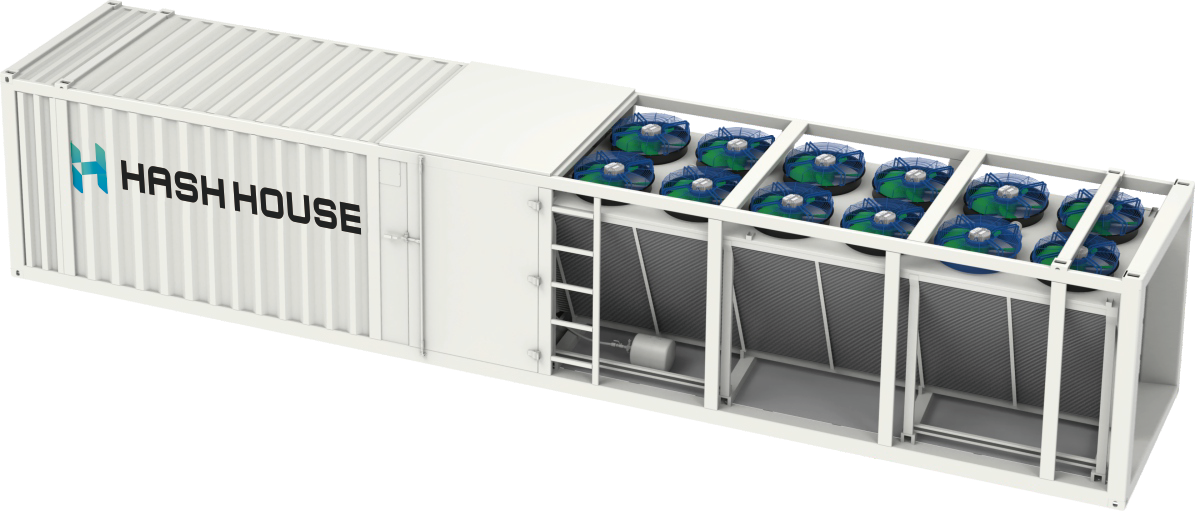

The Trident-IMM is a series of immersion containers crafted for optimal thermal management in high-density computing environments. Leveraging advanced cooling technology, these containers safeguard sensitive equipment, ensuring reliable performance and maximum uptime. Their robust, customizable design supports scalability and enhances operational efficiency, making Trident-IMM an ideal solution for diverse applications requiring effective cooling solutions.

Trident128-ID1200

Overview

Dimension

45 HQ

Power Capacity

1200 MW

Operating Temperature

-35~50℃ / -31~122℉

Capacity

128 units of M56/M66 series

1 Year Warranty

Y

Main Electrical

UL/CSA/NEC/CEC Compliant

Optional

415/480 Compatible

Y

Smart Frame ACB

Y

LSIG Four-Stage Protection

Y

120V Auxiliary Transformer

Y

Current & Voltage Management

Y

Smart PDUs

Plugs

16-Port *8

ABB UL-certified MCB

Y

Leakage Protection

Y

Overload Alarm

Y

Remote Control

Y

Others

Premium Brand Drycooler (i.e. Guntner)

Y

Premium Brand Pump (i.e. Grundfos)

Y

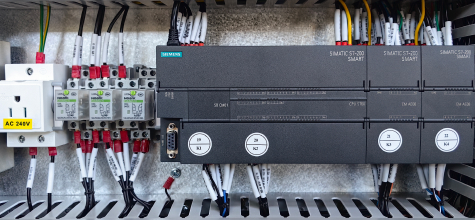

PLC control (i.e. Siemens)

Y

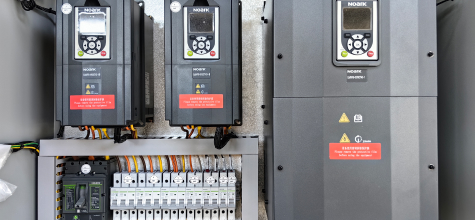

VFD

Optional

Fluid Monitoring System

Y

Air Conditioner

Optional

  • Precision-Engineered Tank Design:

    Utilizing advanced computational fluid dynamics (CFD) simulations, our tanks are custom-designed inch by inch to perfectly fit the servers, ensuring optimal cooling and maximum density.

    01

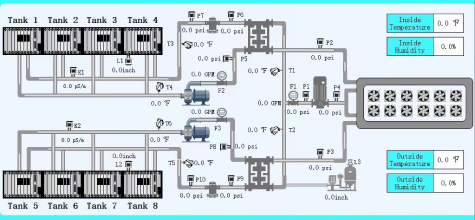

  • Dual Loop System:

    Features a dual loop system (coolant loop and water loop) designed for easy maintenance and reliable operation.

    02
  • Smart Power and Energy Efficiency:

    The system intelligently adjusts power via VFD based on ambient temperature, providing active energy savings by automatically adapting to environmental conditions.

    03
  • Comprehensive Environmental Monitoring:

    Continuous monitoring of outdoor temperature and humidity ensures the system operates efficiently under varying conditions.

    04
  • Independent Remote Control:

    Offers remote control capabilities via an independent system for enhanced flexibility and convenience.

    05

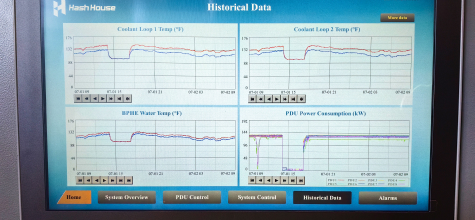

  • Real-Time Monitoring:

    Provides real-time data on flow rate, temperature, coolant liquid level, and pressure values to ensure optimal performance and immediate response to any issues.

    06
  • UL Certified Components:

    Utilizes UL-certified main components, ensuring high safety and reliability standards.

    07
  • MicroBT Certified

    In collaboration with MicroBT, the Trident128-ID1200 is the first certified immersion cooling container specifically designed for the MicroBT Mx6 series.

    08
Trident160-ID1100
